- Overview of Hasleo Disk Clone
- Understanding the Partition Adjustment Interface
- How to Adjust Partition Sizes During Disk Cloning: A Step-by-Step Guide
- Frequently Asked Questions
- Summary
During disk cloning, the target disk's capacity often differs from the source - it may be a larger HDD or a smaller but faster SSD. Hasleo Disk Clone lets you flexibly resize and reposition the target partition during the process, so the cloned disk is ready for immediate use - no additional partitioning tools required.
Overview of Hasleo Disk Clone
Hasleo Disk Clone is a professional-grade Windows migration and disk/partition cloning tool that combines powerful functionality with a simple, user-friendly experience. Its intuitive interface and clear workflow make it easy for even non-technical users to handle system migration, hard drive upgrades, or data backup. Fully compatible with both Legacy BIOS and UEFI boot modes, it supports Windows Vista and later - offering excellent hardware and platform adaptability. The tool primarily supports three types of cloning:
🖥️ System Clone
Target: All system-required partitions
Main Purpose: Migrate Windows to a new disk without reinstalling the OS
💾 Disk Clone
Target: Entire physical disk
Main Purpose: Create a full disk copy for upgrade or replacement
🧩 Partition Clone
Target: A single specified partition
Main Purpose: Back up or migrate data from a specific partition
Precautions for Use ℹ️
Before you begin the cloning process, please verify the following:
| Checklist | Notes |
|---|---|
| Back Up Important Data | All data on the destination disk will be overwritten during cloning. Please back up any important files in advance. |
| Verify Destination Disk Capacity | The total capacity of the destination disk must be greater than or equal to the total amount of data used on the source disk. |
| Clean Up the Source Disk | Delete temporary and junk files from the source disk to reduce cloning time and improve efficiency. |
| Connect the Destination Disk | For laptops with a single drive bay, connect the destination disk externally using a SATA-to-USB adapter cable. |
Understanding the Partition Adjustment Interface ⭐

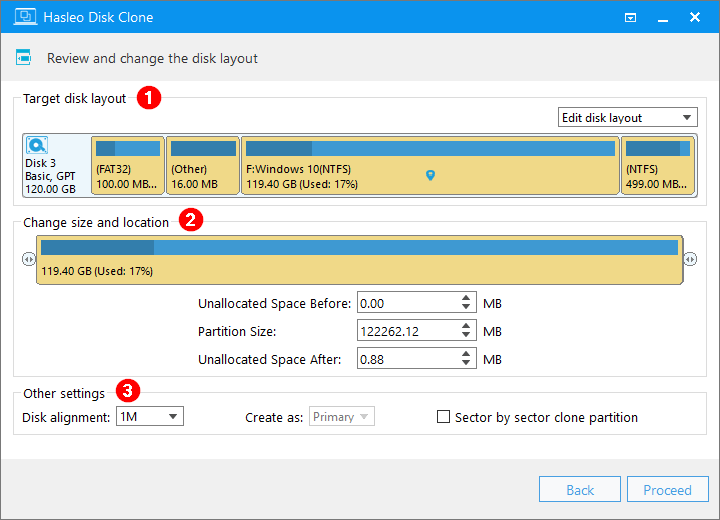

Once you enter the partition adjustment interface, you'll see a graphical layout that clearly shows each partition's capacity and location on the target disk. The interface is organized into three sections - Target disk layout, Change size and location, and Other settings - so you can quickly find and perform the operations you need.
Target disk layout
This area shows a preview of the target disk layout. The top section lists basic attributes - disk number, type, partition table format, and total capacity - so you can confirm this is the correct target disk.
The following section displays a colored progress bar showing the partitions to be written after cloning, along with each partition's size, file system, and completion percentage. Clicking any cloned partition reveals a blue pointer icon that indicates the currently selected item for modification.

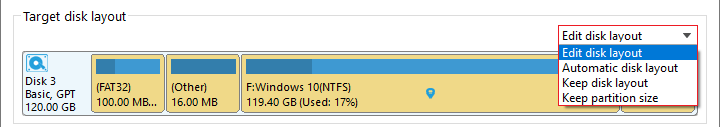

Click the Edit disk layout button in the upper-right corner to select a disk layout strategy that best suits your needs. Available options for adjusting partition sizes, positions, and other settings vary by mode.
Edit disk layout
In this mode, you can manually edit the core parameters of the selected partition to flexibly adjust its size, location, and other settings.
Automatic disk layout
Hasleo Disk Clone automatically adjusts partition size and location based on the destination disk's total capacity. In this mode, the Change size and location and Other settings sections are locked and cannot be modified.
Keep disk layout
Preserves the source disk's original partition layout. Partition sizes remain unchanged. If the target disk is larger than the source, the extra space becomes unallocated. In this mode, the Change size and location section is locked; only the Sector by sector clone partition option is available under Other settings.
Keep partition size
Partition sizes are locked to match the source disk and cannot be changed. You can adjust partition locations by modifying the start and end offsets. The Other settings section remains fully configurable.
Change size and location
This area is the core parameter editor for the currently selected partition. The colored progress bar at the top visually represents the partition's total capacity and used percentage - dark blue indicates used space, while light blue shows available space. Offset values for the partition's start and end positions are displayed on either side of the bar; you can resize or reposition the partition by dragging the sliders.
Below the progress bar, you'll find three numerical boxes for precisely adjusting the partition's size and position.
Unallocated Space Before
This value is 0.00 MB, indicating that the partition is adjacent to the previous one with no free space in front. Increasing this value will shift the entire partition to the right, creating free space in front of it.
Partition Size
Adjusting this value changes the partition's capacity, within the limits of used data and available free space on both sides.
Unallocated Space After
This value is 0.00 MB, indicating that there is almost no free space after the partition. Increasing this value will shrink the partition, freeing up space after the partition.
Other settings
This section provides additional configuration options, including disk alignment, partition types, and sector-level cloning.
Disk alignment
1M (Recommended): 1M alignment is a subset of 4K alignment. Partitions aligned to 1MB are always 4K-aligned, which helps you get the best SSD performance. In Windows Vista and later operating systems, partitions created using Windows Disk Management are always aligned to 1MB bytes, regardless of whether the disk is an SSD.
4K: This option ensures the starting sector of every partition is aligned to 4K bytes, which is very important for the best performance of an SSD.
Cylinder: Ensure the starting sector of each destination partition always starts at the beginning of a cylinder. Windows XP and previous OSs use this alignment mode.
None: The start sector of each of the destination partitions is not aligned.
Create as
The current setting is Primary, which specifies the partition type. This option determines whether the partition is created as primary or logical. On GPT disks, all partitions are primary by default; on MBR disks, this option distinguishes between primary and logical partitions.
Sector by sector clone partition
Select this option to perform a sector-by-sector copy of the source partition, including unused sectors.
How to Adjust Partition Sizes During Disk Cloning: A Step-by-Step Guide
Taking system cloning as an example: when migrating Windows to a larger target disk, you need to properly partition the additional unallocated space. The specific steps are as follows:
Step 1. Ensure the target disk is connected to your computer, then download, install, and run Hasleo Disk Clone.

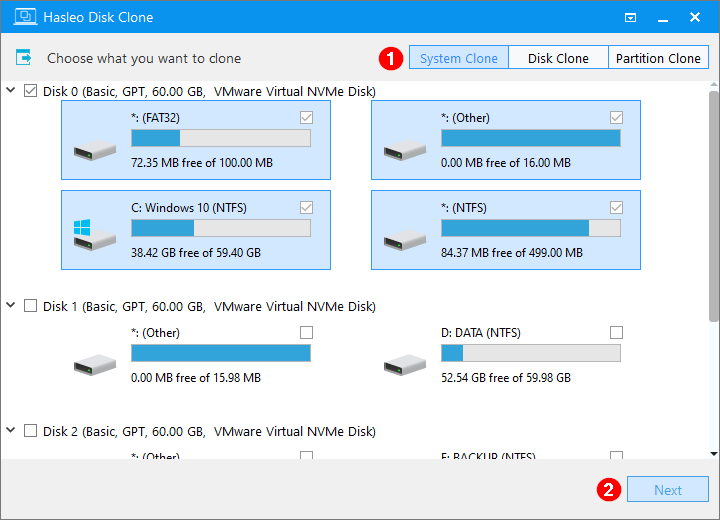

Step 2. Click System Clone, and the program will automatically select all the partitions required to clone Windows. Then simply click Next.

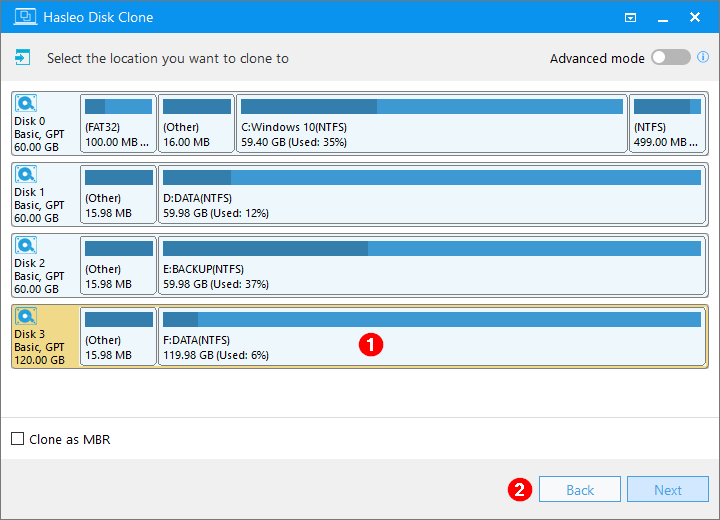

Step 3. In the disk list, select the newly connected disk that has the largest available space as the target disk, then click Next to continue.
Clone as MBR/GPT : allows you to clone a Windows OS from an MBR disk to a GPT disk or from a GPT disk to an MBR disk.
Delta Clone: This option appears only when the system detects that a complete copy of the selected partition already exists on the target disk. When enabled, it clones only the data blocks that have changed since that copy was created, significantly improving efficiency.

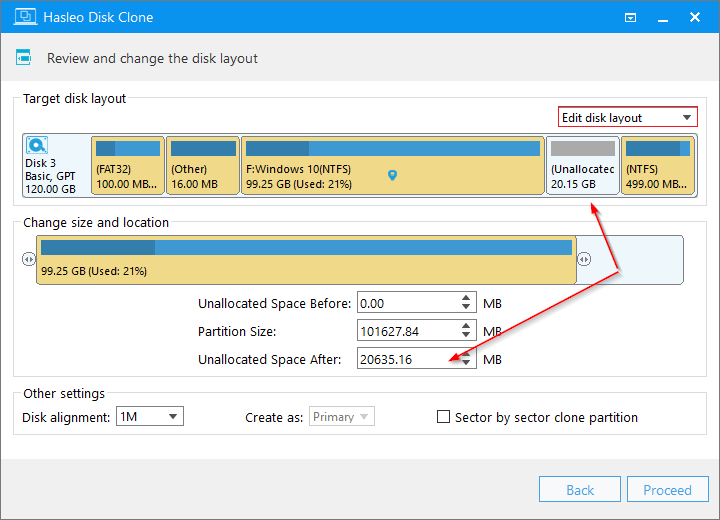

Step 4. Select the Edit disk layout option, then click the partition you want to adjust. Drag the slider or modify the value to change the partition's capacity and location. You can also configure disk alignment and sector-by-sector cloning options as needed. Once everything is confirmed, click Proceed.
4K: This option ensures the starting sector of every partition is aligned to 4K bytes, which is very important for the best performance of an SSD.
Cylinder: Ensure the starting sector of each destination partition always starts at the beginning of a cylinder. Windows XP and previous OSs use this alignment mode.
None: The start sector of each of the destination partitions is not aligned.

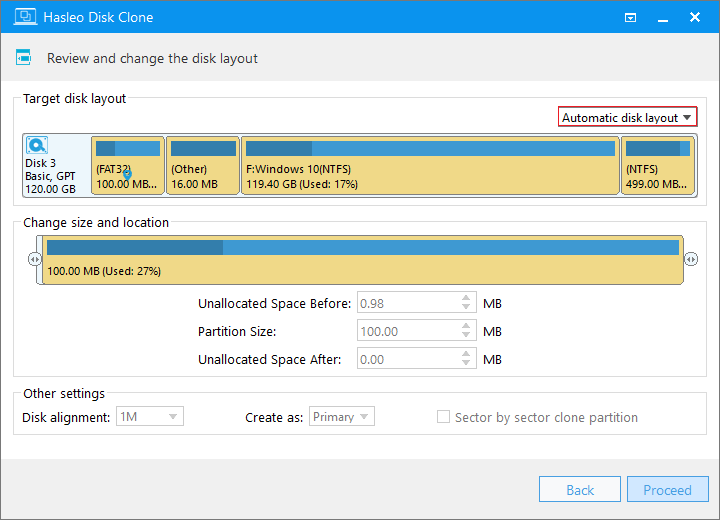

Step 4. If you select the Automatic disk layout strategy, the program will automatically adjust the partition sizes and locations. All you need to do is confirm and click Proceed.

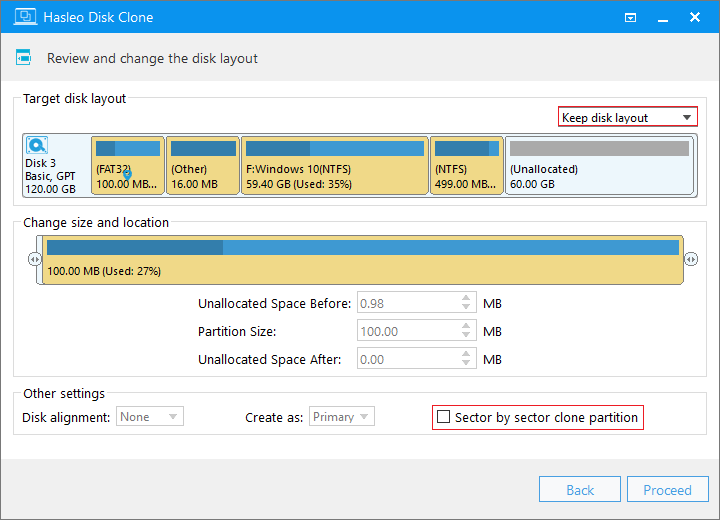

Step 4. If you select the Keep disk layout strategy, the source disk's original partition structure will be preserved, with each partition retaining the same capacity as on the source. Any remaining space will be left as unallocated. You only need to configure the Clone sector-by-sector option. After confirming everything is correct, click Proceed to continue.

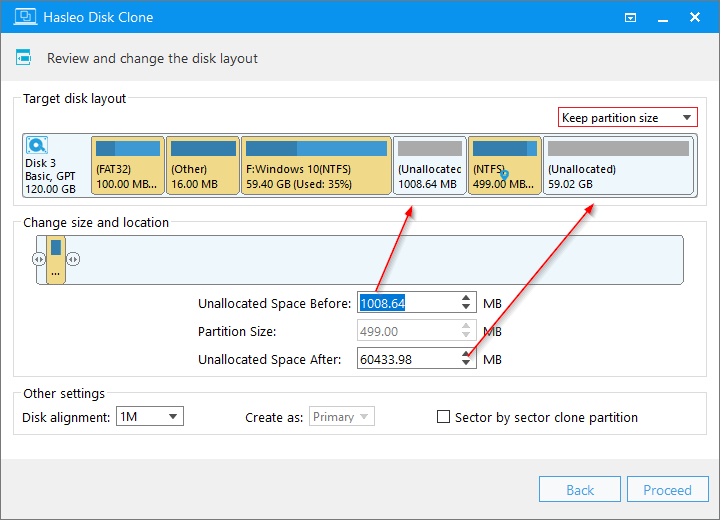

Step 4. Select the Keep partition size layout strategy to preserve the original partition sizes. To adjust a partition's position, click it and modify its start and end offsets. Configure disk alignment and sector-by-sector cloning as needed, then click Proceed after verifying all settings.
4K: This option ensures the starting sector of every partition is aligned to 4K bytes, which is very important for the best performance of an SSD.
Cylinder: Ensure the starting sector of each destination partition always starts at the beginning of a cylinder. Windows XP and previous OSs use this alignment mode.
None: The start sector of each of the destination partitions is not aligned.

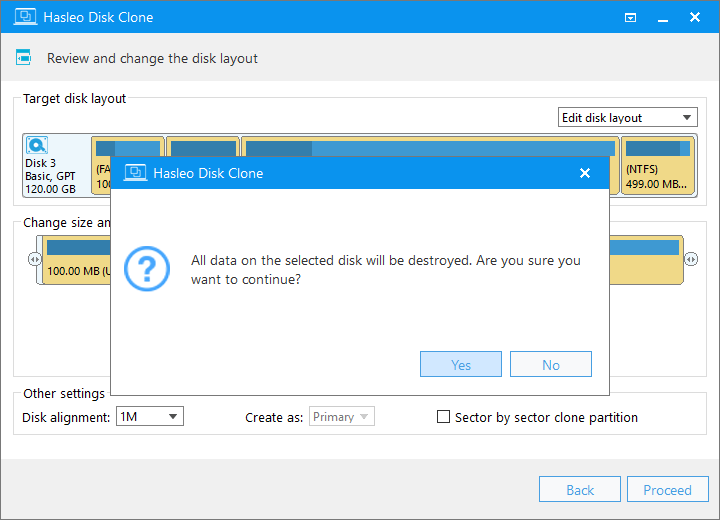

Step 5. The system will display a warning that all data on the selected drive will be deleted. Please back up important data beforehand. If you have already backed up or don't need to, click Yes to continue.

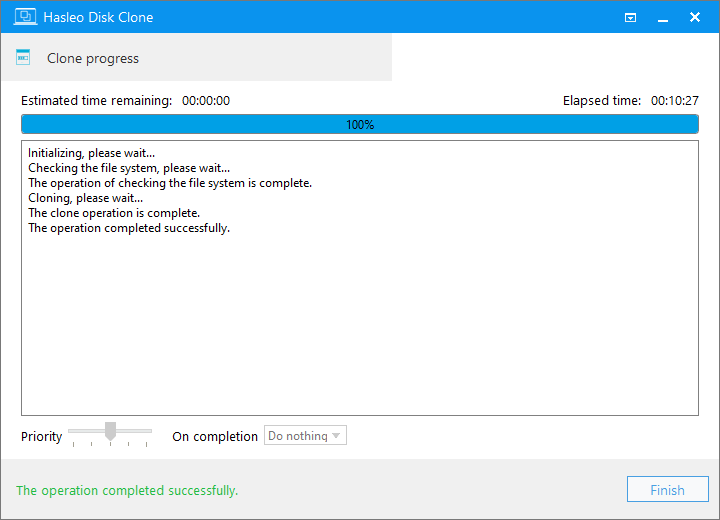

Step 6. Hasleo Disk Clone has started migrating Windows to the destination disk. The time required depends on the amount of data being migrated. Please wait.
Frequently Asked Questions (FAQ) 🔥
A: Yes. Hasleo Disk Clone allows you to flexibly adjust partition size and location during the cloning process. You can use different disk layout strategies such as Edit disk layout, Automatic disk layout, Keep disk layout, or Keep partition size to meet your needs.
A: Automatic disk layout lets the program automatically adjust partition sizes and positions based on the target disk capacity, while Edit disk layout allows you to manually edit partition parameters including size, location, and other settings for full control.
A: No. Hasleo Disk Clone ensures data integrity when adjusting partition sizes. The tool only modifies partition boundaries without altering the actual data within partitions.
A: 1MB alignment is recommended for SSDs. It ensures 4K alignment and optimal SSD performance. Windows Vista and later operating systems always use 1MB alignment by default.
A: Back up all important data on the target disk as it will be overwritten during cloning. Ensure the target disk capacity is greater than or equal to the used space on the source disk. Clean up temporary and junk files from the source disk to speed up the process.
Summary
With the detailed instructions in this article, you should now be able to flexibly adjust partition sizes during cloning with Hasleo Disk Clone, helping you optimize your disk layout while migrating data.
⚠️ Important Reminder: The cloning process involves comprehensive writes to the target disk. Any interruption or incorrect operation may result in data loss. Before proceeding, double-check that no important files remain on the target disk, or make a complete backup in advance. Data security comes first - careful preparation ensures a smooth, worry-free migration.
Once you're ready, simply follow the steps in this tutorial. Hasleo Disk Clone will handle the rest efficiently. We wish you a smooth process and success on your first try! ❤️ ❤️
